Answer
Aug 18, 2025 - 07:19 PM

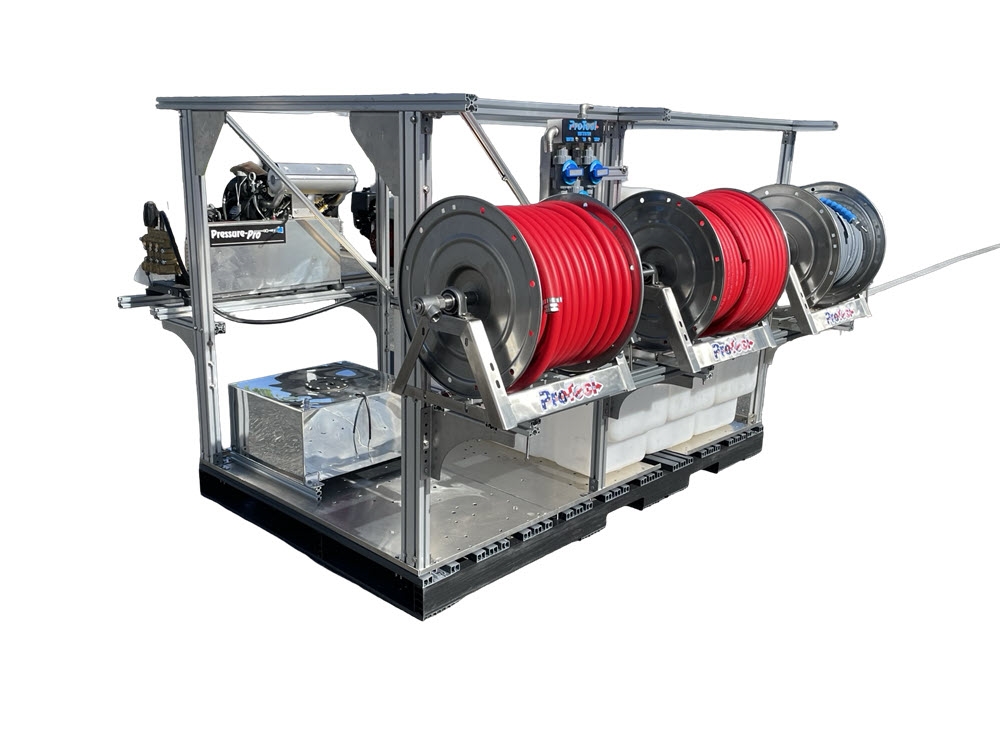

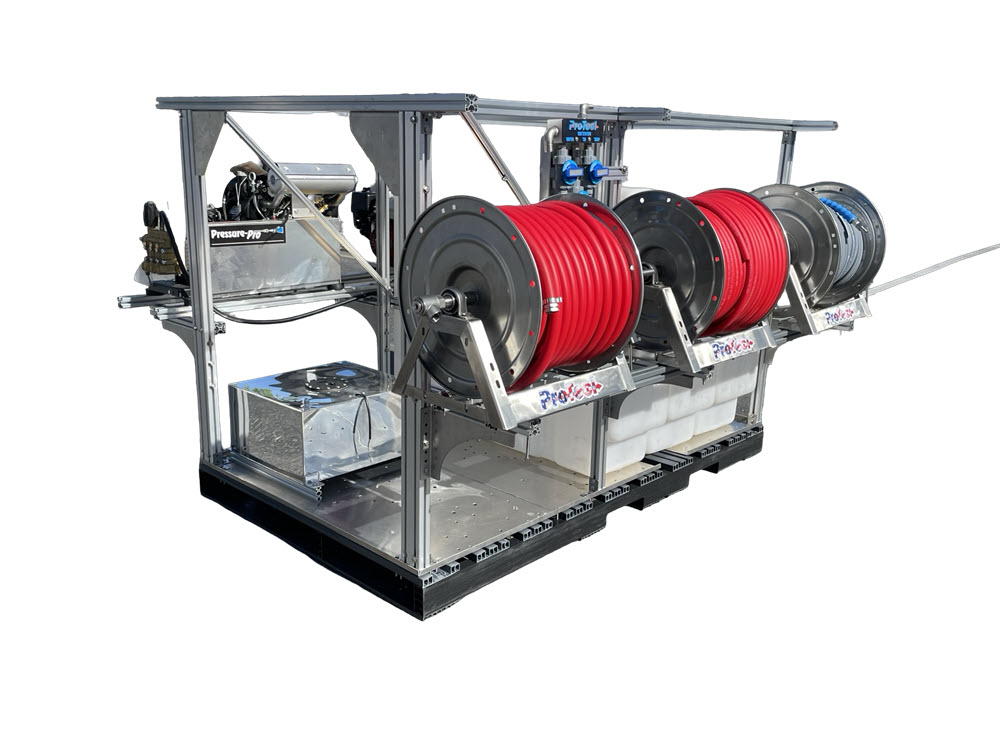

The skid is built on a 42in by 48in footprint,
with one reel hanging over the curb-side edge of the truck bed by 14inches
in that are it would be 62 or so inches wide from left edge to the end of the reel that hovers over the bed rail.
Weight before water is about 500lbs
There is overfill protection at the top of the tank in the form of a SS body float valve.
Battery management...
Charging...
A lot depends on the usage,..
Water flow types of brushes used and the water flow,
but figure two operators and making RO water for them at greater 2gpm from Tap Water input
Each hour will need 15 amps and 8 hours of production is 120 amps of storage
We recommend at least a 200amp hours of battery (not included) to support that
A battery charger needs to be able to attached to the system of at least 5 amps to recharge the batteries overnight.
The system includes the power supplies to be able to run from 110v shore power where the site has available power to run a 110v extension cord to te skid.
.
When contemplating adding a pressure washer later we would recommend a different style skid to start.
The frame of this skid below support more equipment and is also a ladder rack and will support the future pressure washer and reel for that house.
